TECHNICAL SHIP

BLU 118

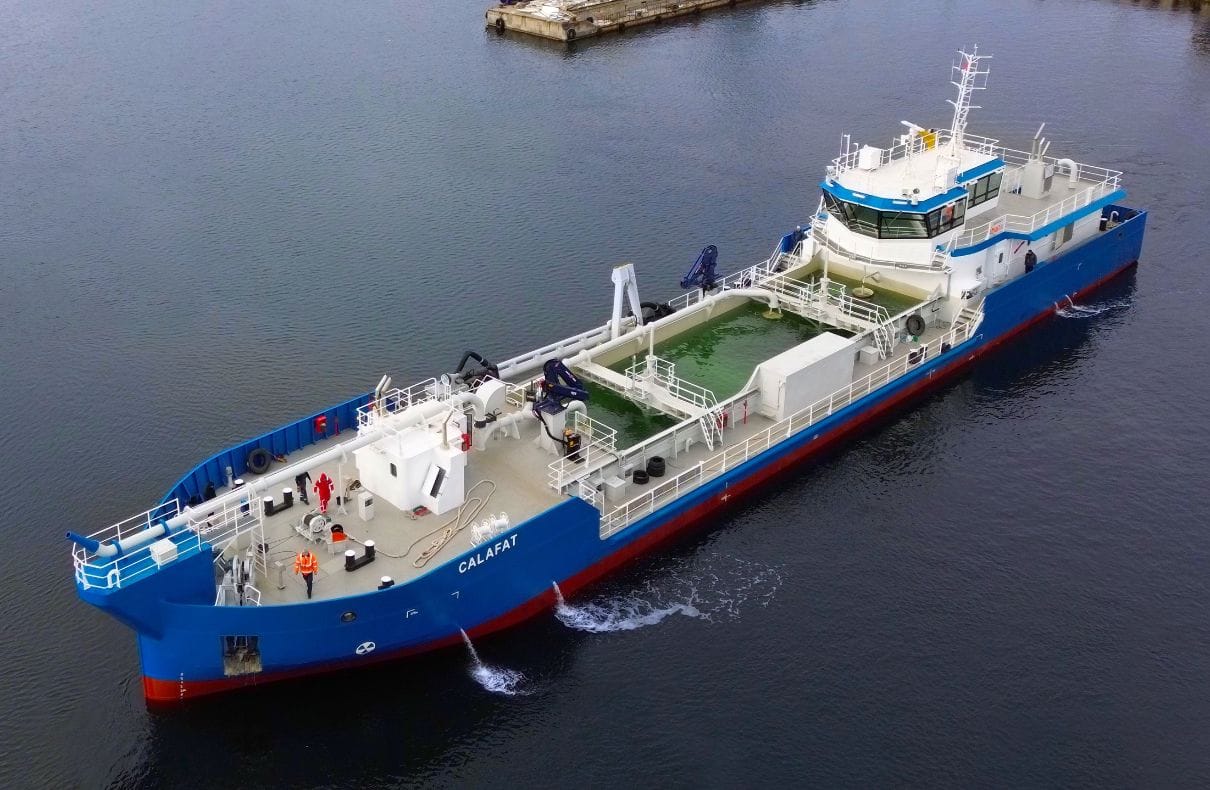

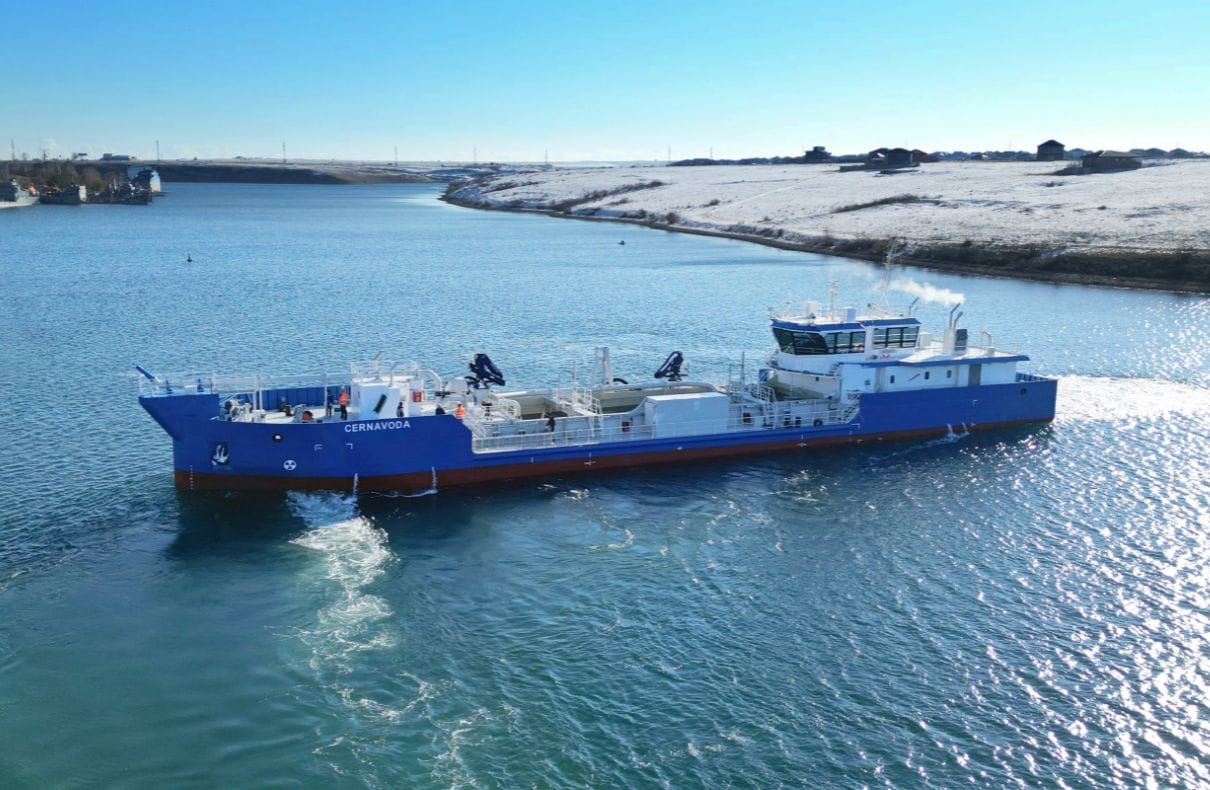

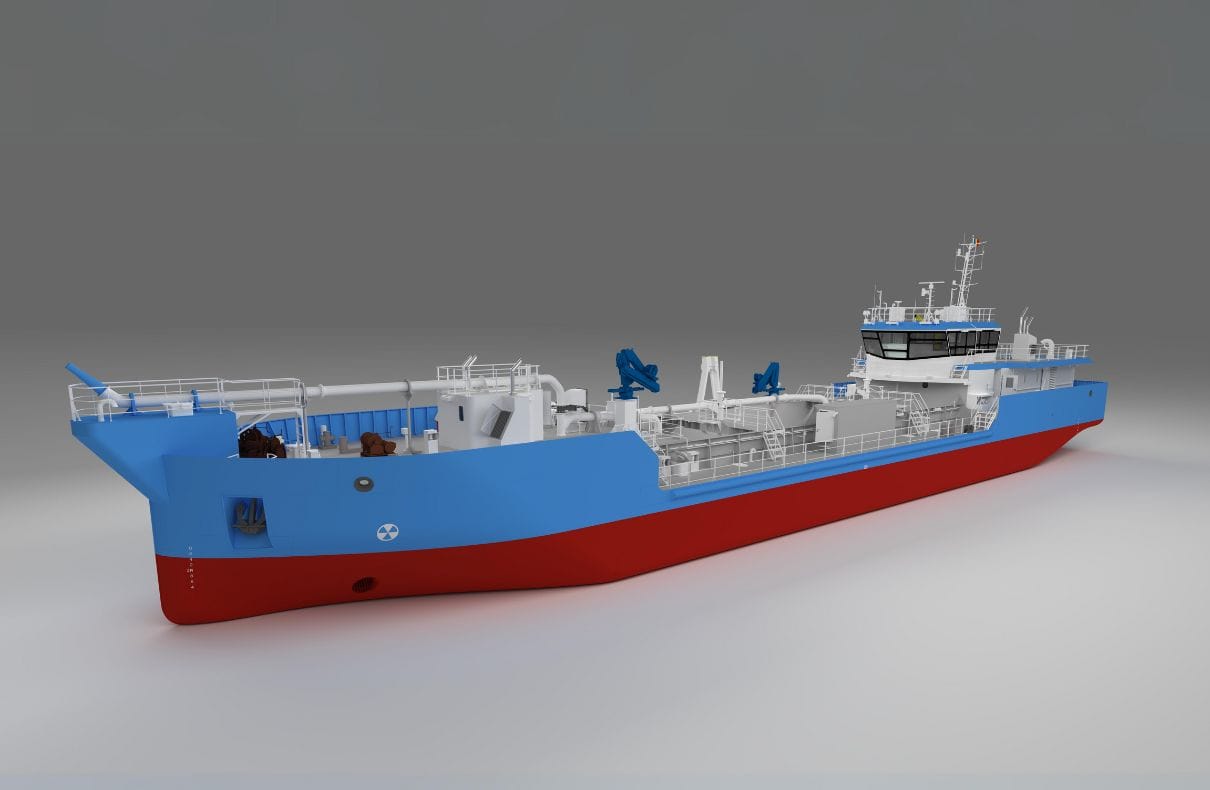

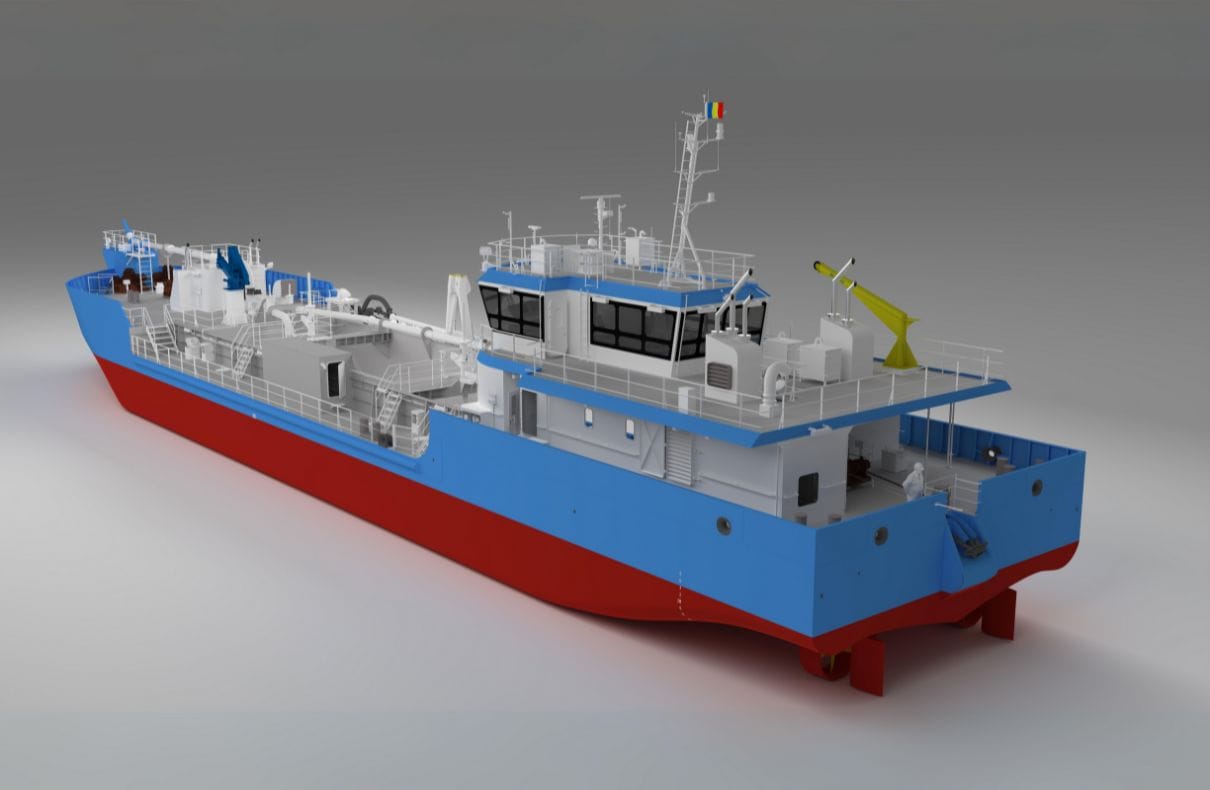

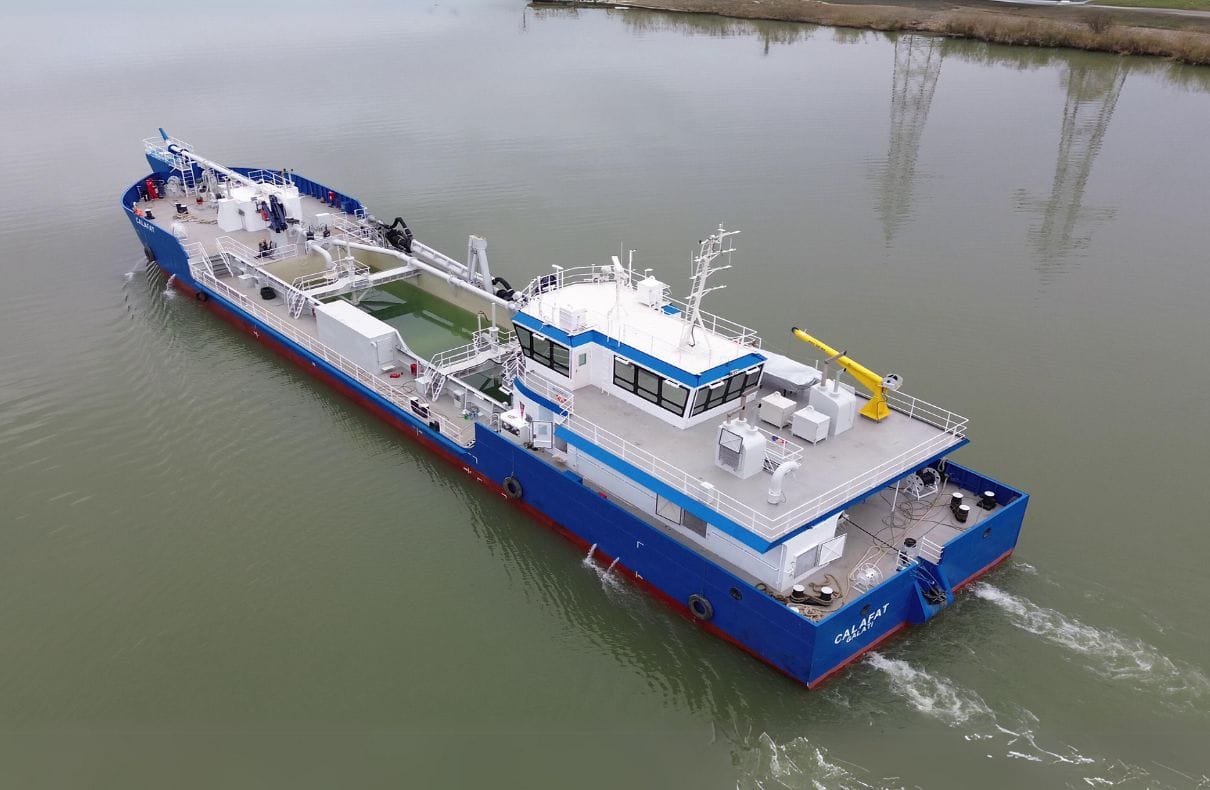

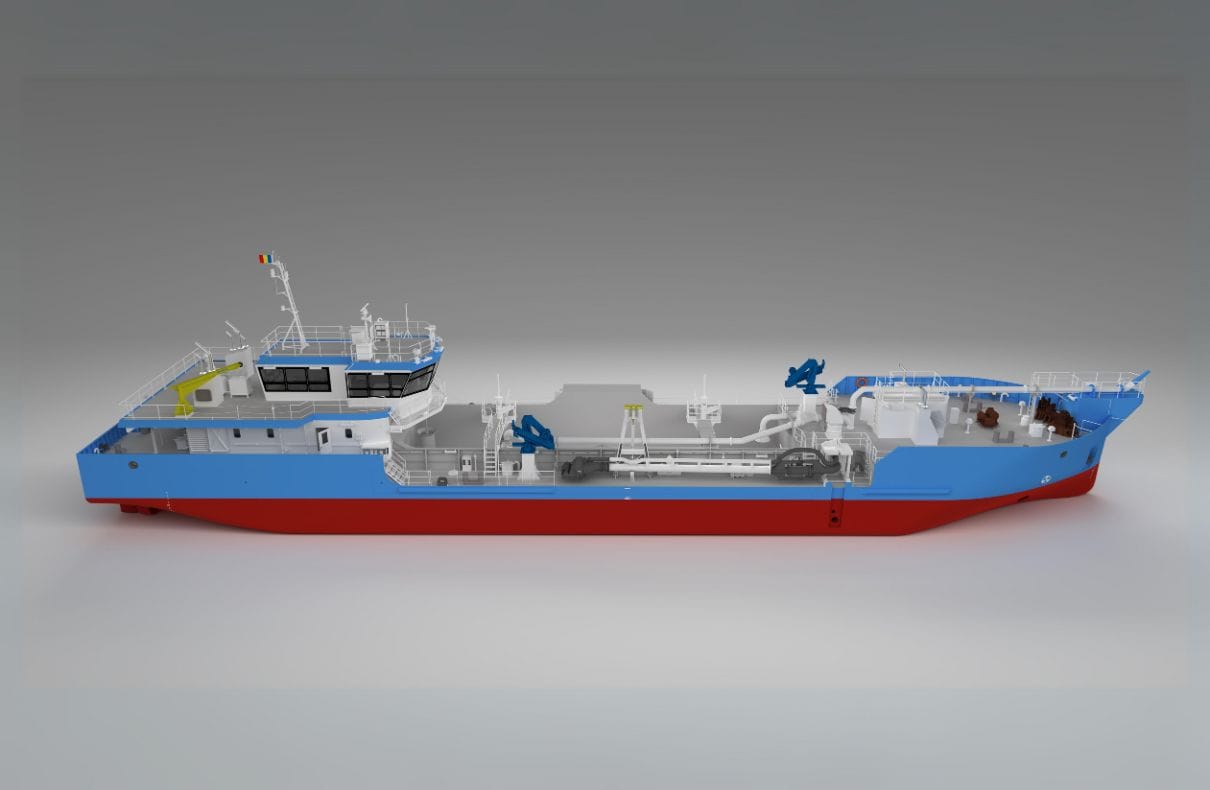

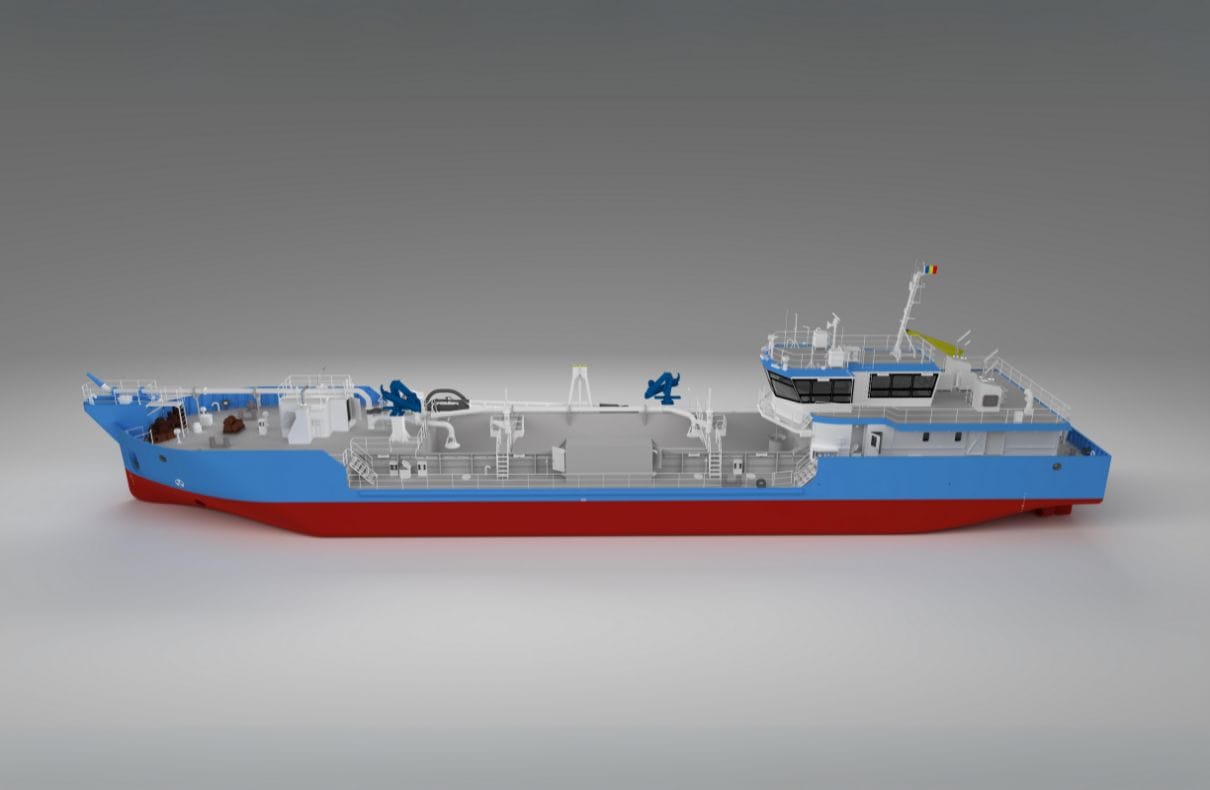

BLU 118 Inland Dredger Ship is one of the most iconic TSHD (Trailing Suction Hopper Dredger) designs for our company.

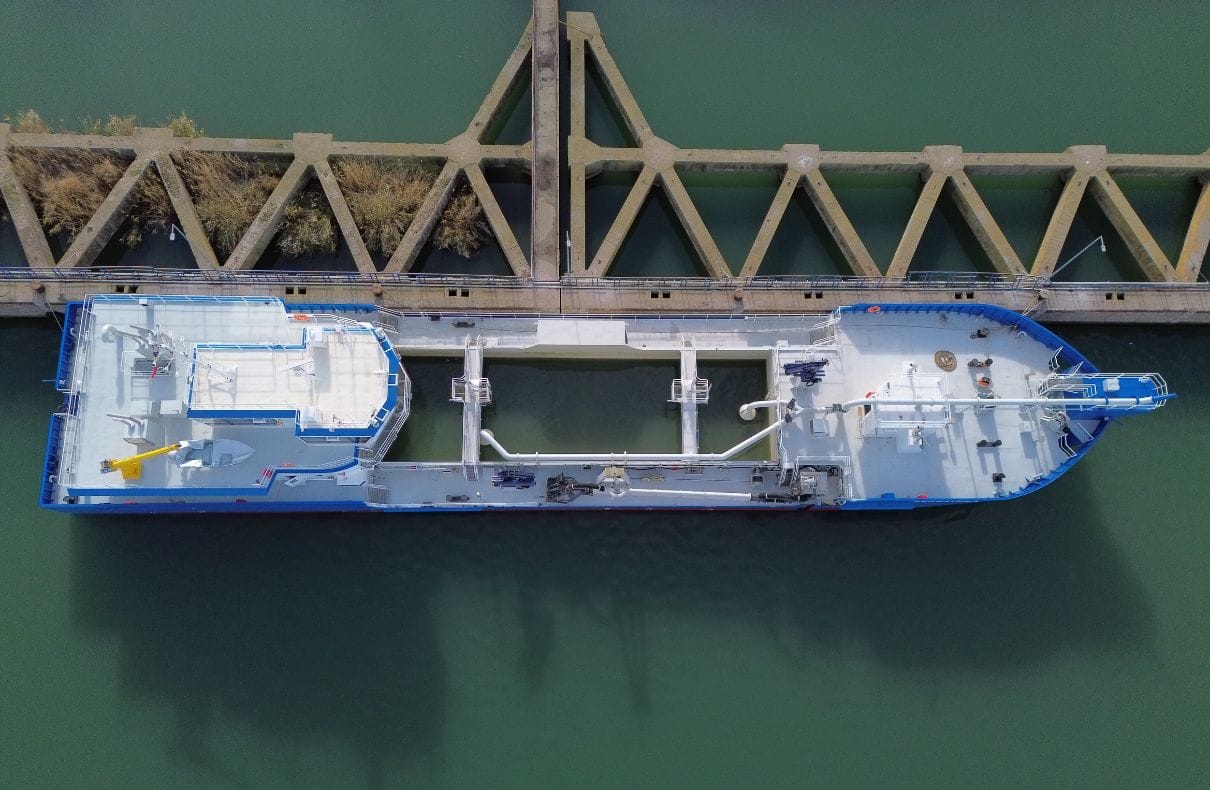

The vessel has a dual hopper layout with a total capacity of 462 cubic meters. The dredged material is pumped to the hopper and stored until full, ready for transport. Once loaded, the TSHD departs for the discharge site. The vessel has multiple methods for emptying its hopper, such as opening hopper doors, pumping material ashore or utilizing a rainbow installation, depending on project requirements.

SPECIFICATIONS_

Length

64.00 m

Breadth

12.00 m

Depth

3.20 m

Draught

2.50 m

Autonomy

200 hrs of functioning

Ahead speed

10 km/h (full load)

Area of navigation

3, inland area


OTHER SPECS AND DETAILS:

Hopper capacity: 462 m3

Dredging pump capacity: 2235 m3 / h hydro mass, with 10-30% concentration of solid material

Dredging depth: max 10 m
